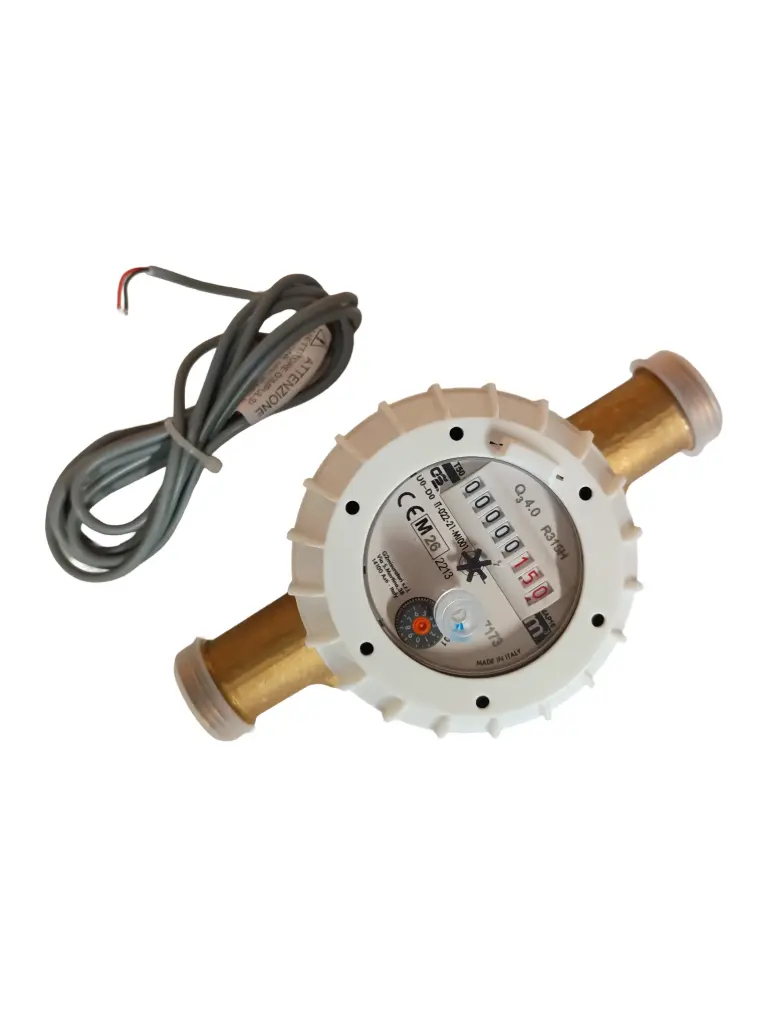

Water meter low peak flow 4puls/L
The low peak flow water meter is a magnetic water meter with a rotating piston. The measuring chamber is designed to achieve high metrological performance in terms of measuring range and accuracy. This pulse water meter has high sensitivity to very low flow rates (less than 1 litre/hour).
Special high-quality composite polymer components obtained using the latest injection technologies and precision minimise friction between the measuring chamber and the piston for high metrological performance.
This impulse water meter has a Ratio R400, which makes it highly accurate.
Technical specifications:
- Body made of cast brass.
- The measuring chamber is made of high-quality self-lubricating materials with a high graphite content. Internal components are made of non-magnetic, anti-calcification and wear-resistant materials.
- Special polymer piston designed for minimal weight and long service life.
- Not affected by external magnetic fields.
- Hermetically sealed dial, IP-68-rated version also available.
- Sabotage detection.
- Effective internal sieve.
- Nominal working pressure: 16 bar.
- Pulse interval: 1 pulse/litre
- Upstream or downstream straight lengths are not required.
- Maximum water temperature: 50 °C.
- The meter is equipped with a non-return valve as standard.
| Brand:: Gioanola |
